Veritas® Hinge Mortise Plane

Veritas® Hinge Mortise Plane

Product Code:
05P38-70

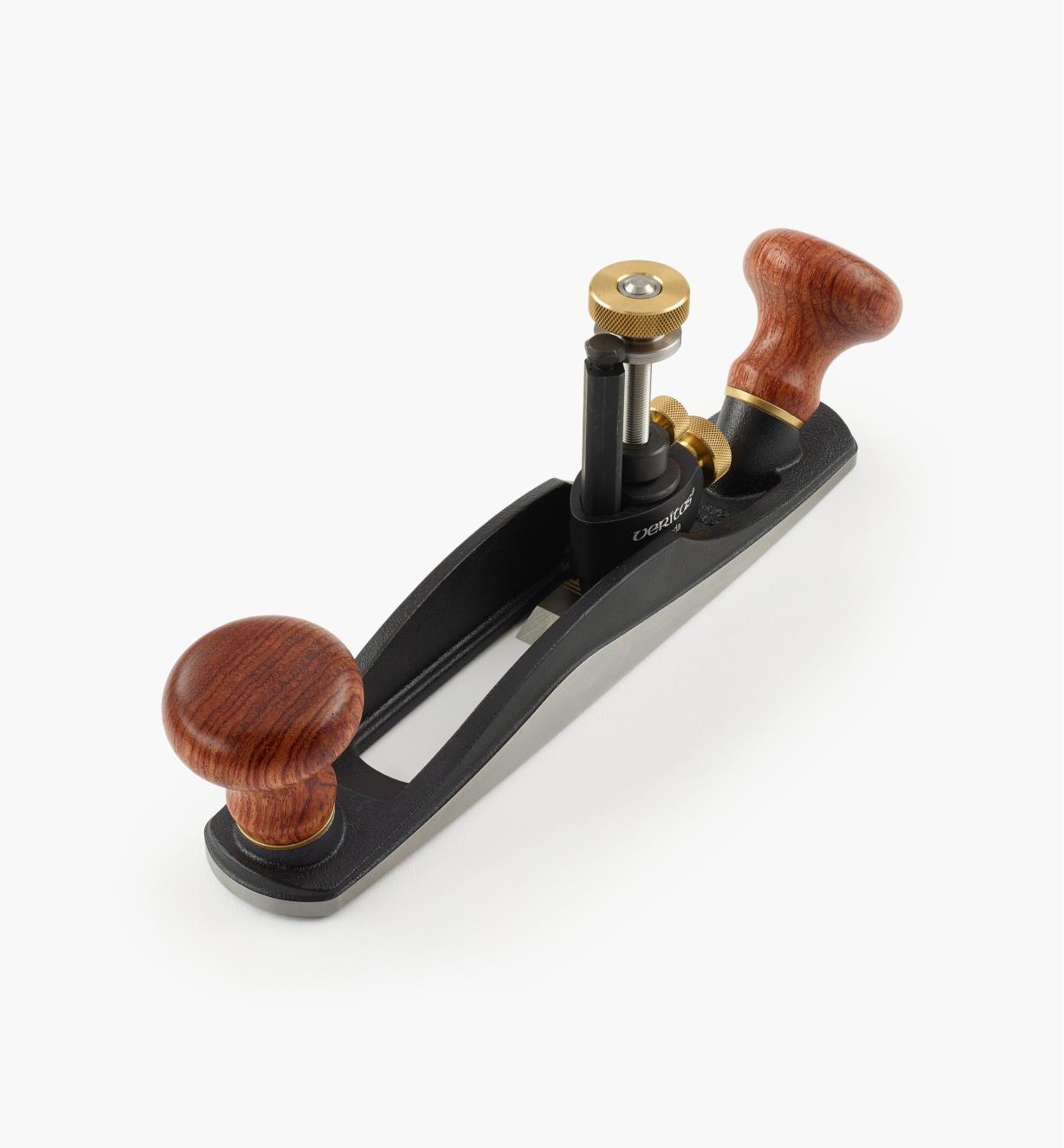

This tool gives you the precise depth control of a router plane but with a long, narrow sole for good registration on door edges and other narrow workpieces. By establishing the edges with a chisel, you can cut a crisply defined mortice without the need for a template or jig - in many cases, more efficiently than a power router. The large slot in the body lets you clearly see where you're cutting.
Depth setting is quick and easy, with a fine screw-feed mechanism and the resulting depth of cut controlled by a locking depth stop. A spring-loaded blade-clamping collar prevents the blade from shifting when the collar is loosened, allowing controlled adjustment to a depth of 1". It can also be set to fully release for quick blade removal.
Made from ductile cast iron, the plane has a 9 11/16" long, 1 13/16" wide sole, ground flat. The large wooden knobs are positioned with comfort and control in mind, with an angled rear knob to make it easier to push. The included 3/4" wide high-carbon steel cutter removes material quickly, and is interchangeable with the blades of the Veritas router plane. A blade sharpening jig for the two-piece blade is also included.
Measures 10 7/8" long overall and weighs 2 lb 6 oz.
Made in Canada. Patented.

$320.00
$0.00 $320.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $80.00
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

This tool gives you the precise depth control of a router plane but with a long, narrow sole for good registration on door edges and other narrow workpieces. By establishing the edges with a chisel, you can cut a crisply defined mortice without the need for a template or jig - in many cases, more efficiently than a power router. The large slot in the body lets you clearly see where you're cutting.
Depth setting is quick and easy, with a fine screw-feed mechanism and the resulting depth of cut controlled by a locking depth stop. A spring-loaded blade-clamping collar prevents the blade from shifting when the collar is loosened, allowing controlled adjustment to a depth of 1". It can also be set to fully release for quick blade removal.
Made from ductile cast iron, the plane has a 9 11/16" long, 1 13/16" wide sole, ground flat. The large wooden knobs are positioned with comfort and control in mind, with an angled rear knob to make it easier to push. The included 3/4" wide high-carbon steel cutter removes material quickly, and is interchangeable with the blades of the Veritas router plane. A blade sharpening jig for the two-piece blade is also included.
Measures 10 7/8" long overall and weighs 2 lb 6 oz.
Made in Canada. Patented.
