Veritas® Iron Edge-Trimming Plane with PM-V11 Blade - Left Hand

Veritas® Iron Edge-Trimming Plane with PM-V11 Blade - Left Hand

Product Code:
05P03-75

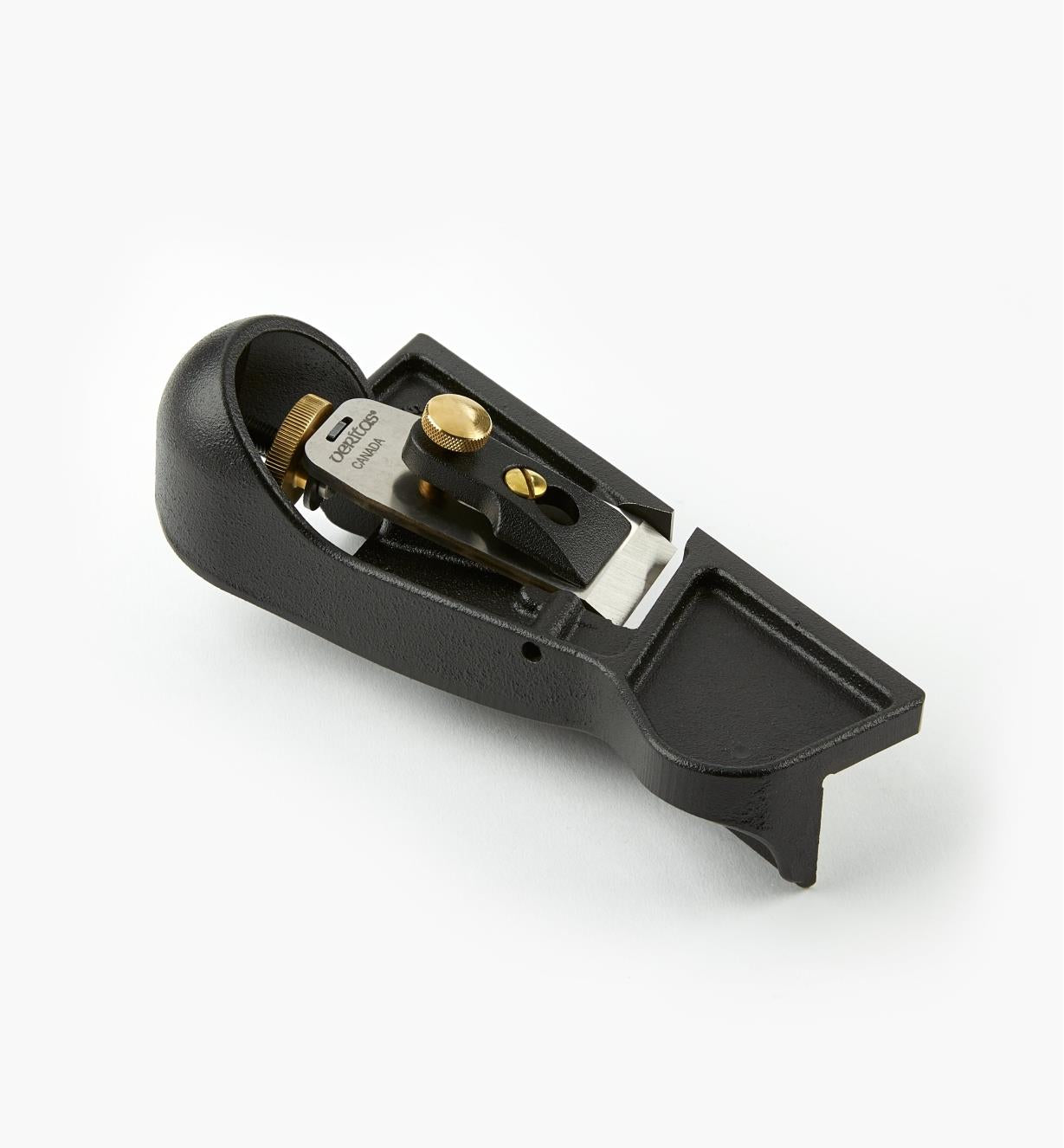

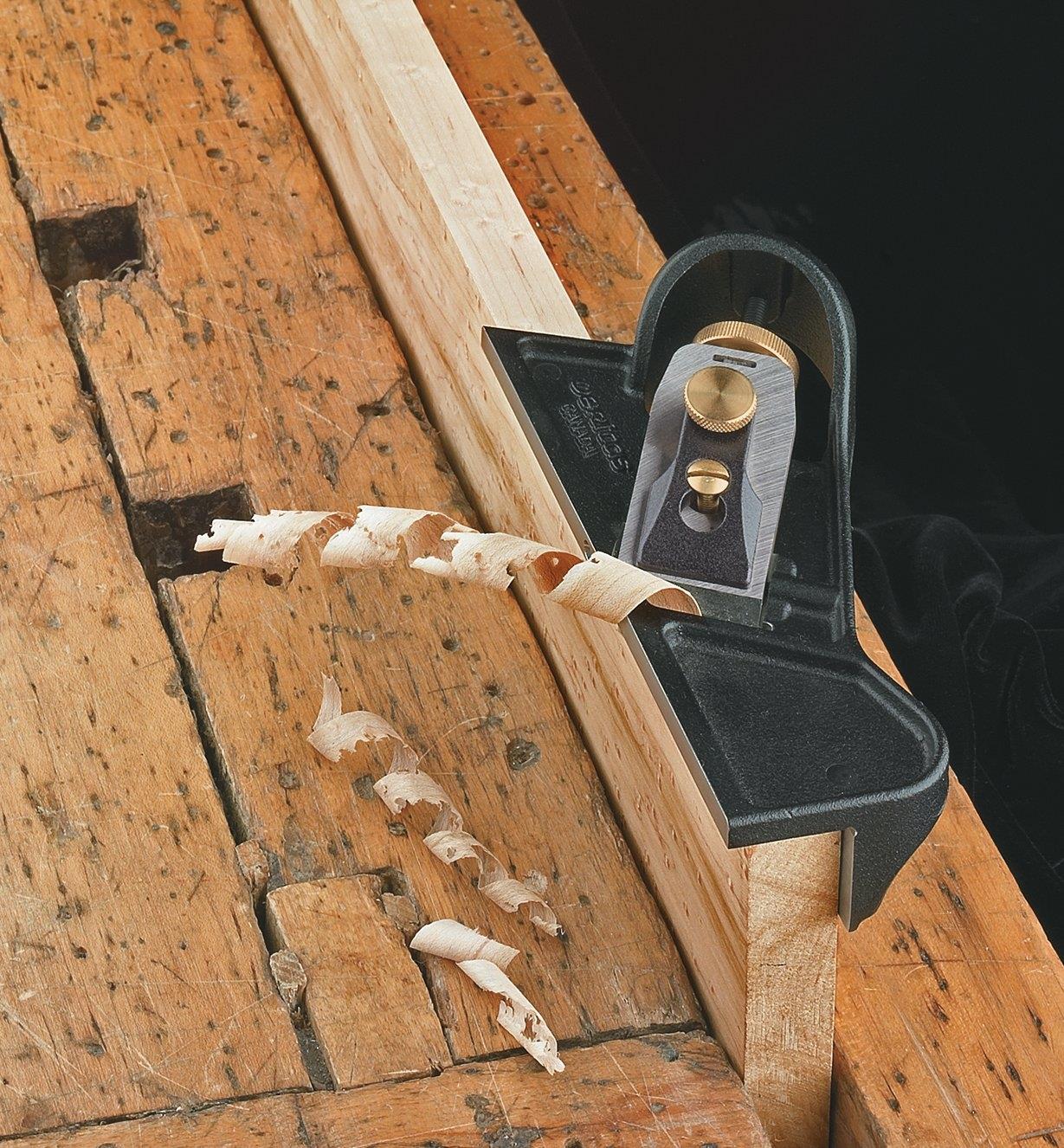

The Veritas Left-Hand Iron Edge-Trimming Planes work end grain or give final trimming cuts on jointed boards, for smooth edges exactly 90 to the face. The blade is set at a 30 angle to give an easier slicing action, and the bed is set at a shallow 12. The 3.2mm thick, 32mm wide blades are in the exclusive PM-V11 steel and work wood up to 25mm wide.

This plane is cast in durable ductile iron for everyday use, and is available in right- and left-hand models, with each plane weighing in at 623g.

You may need only one model, the choice is often based on which of your hands is dominant, but neither model is exclusively for left-handed or right-handed users. They are in fact complementary. Having both lets you handle any grain direction, which is handy for working boards with only one true reference face, such as lengths of moulding.
Depth is adjusted with a large thumb wheel and an independent traveller, for fast, accurate setting with no blade skewing. Set screws in the side keep the blade from shifting when it hits a knot. The fence is drilled so you can add blocks or a wooden wedge to cut controlled bevels, as used in boatbuilding.
Made in Canada.

$260.00
$0.00 $260.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $65.00
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

The Veritas Left-Hand Iron Edge-Trimming Planes work end grain or give final trimming cuts on jointed boards, for smooth edges exactly 90° to the face. The blade is set at a 30° angle to give an easier slicing action, and the bed is set at a shallow 12°. The 3.2mm thick, 32mm wide blades are in the exclusive PM-V11 steel and work wood up to 25mm wide.

This plane is cast in durable ductile iron for everyday use, and is available in right- and left-hand models, with each plane weighing in at 623g.

You may need only one model, the choice is often based on which of your hands is dominant, but neither model is exclusively for left-handed or right-handed users. They are in fact complementary. Having both lets you handle any grain direction, which is handy for working boards with only one true reference face, such as lengths of moulding.
Depth is adjusted with a large thumb wheel and an independent traveller, for fast, accurate setting with no blade skewing. Set screws in the side keep the blade from shifting when it hits a knot. The fence is drilled so you can add blocks or a wooden wedge to cut controlled bevels, as used in boatbuilding.
Made in Canada.
