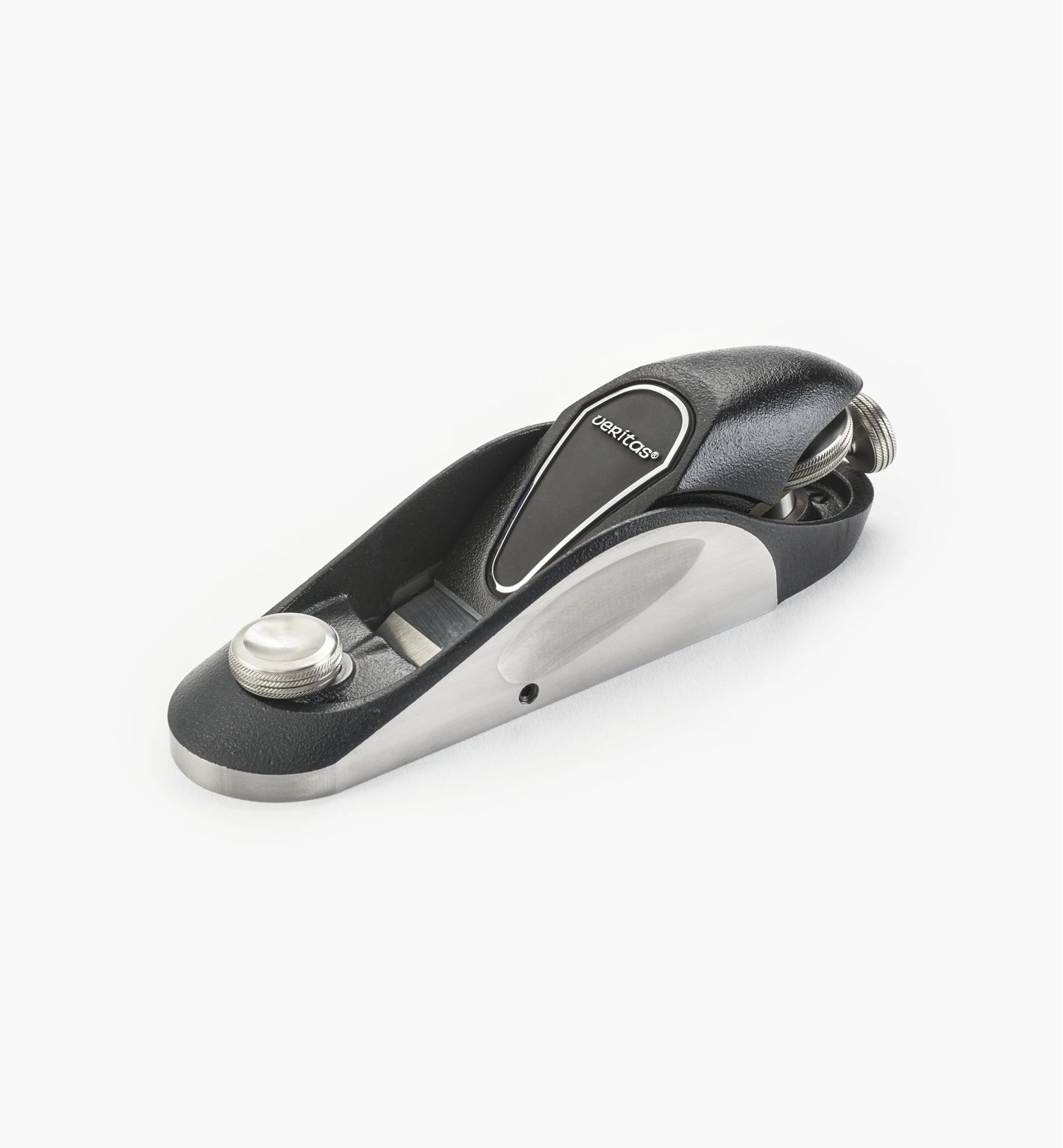

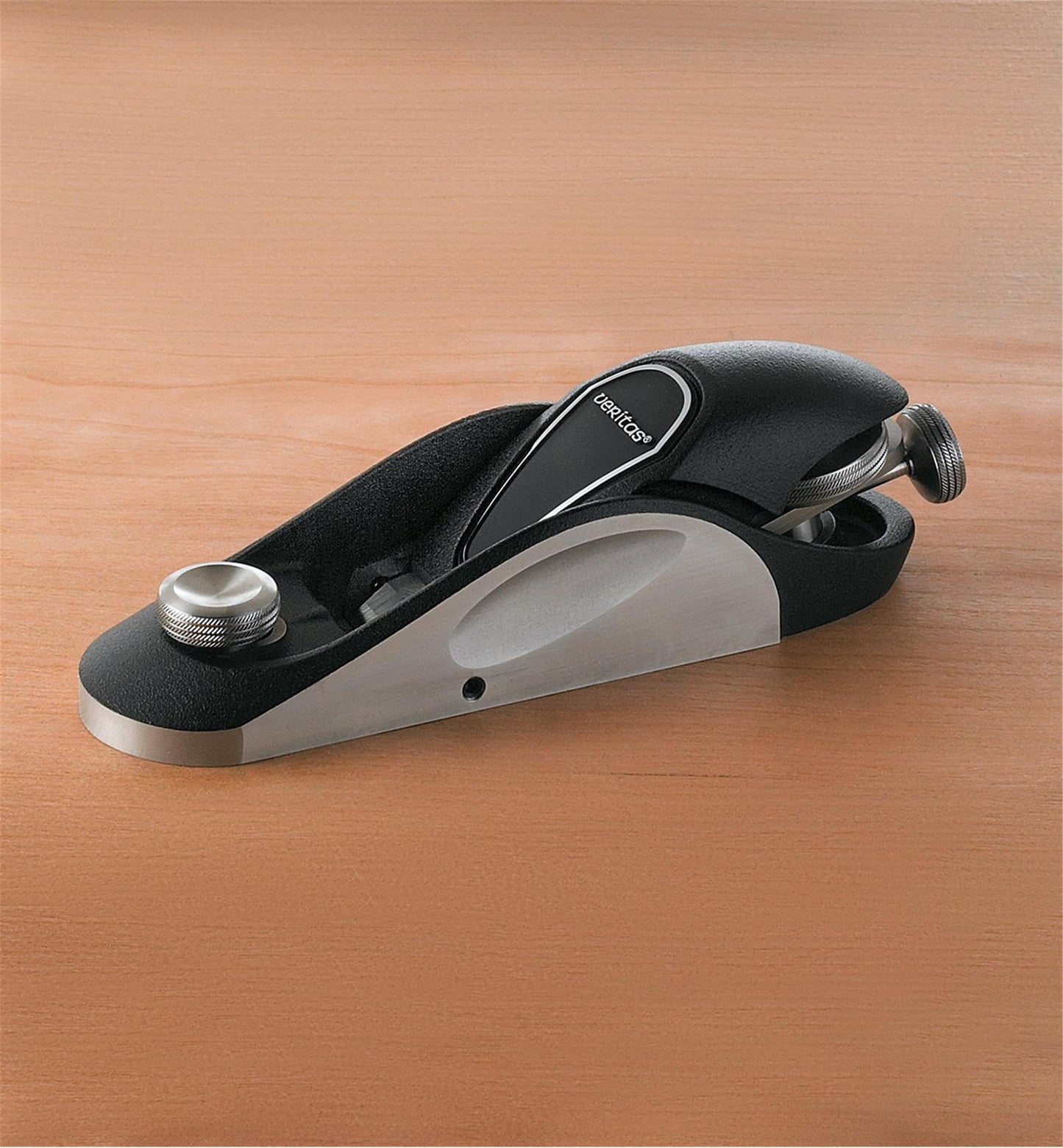

Veritas DX60 Low Angle Block Plane with PM-V11 Blade

Veritas DX60 Low Angle Block Plane with PM-V11 Blade

Product Code:
05P70-06

Made to exacting standards with refined stainless-steel hardware, this is one of Veritas' finest planes.
The knobs and wheels have elegant elliptical knurled edges for a firm grip. The lever cap has been extensively redesigned to integrate cleanly with the plane body and provide an almost continuous hand-contact surface, with tactile cues for finger placement. The Norris-type adjuster mechanism combines feed and lateral adjustments, making blade setting accurate and easy. Close manufacturing tolerances reduce backlash to no more than a 1/4 turn. The adjuster is locked to the body, and will not become inadvertently unseated.
Mouth adjustment is effected by loosening the stainless-steel locking knob. An unobtrusive set screw in the throat of the plane allows repeatable mouth positioning while at the same time preventing the moveable toe from contacting the blade. The toe is completely enclosed by the body casting.
Made from ductile iron, the contoured body is 162 x 45mm (6 5/8" long x 1-3/4" wide) with a 12 bed angle, and is finished with a durable powder-coat polymer paint. It is machined and surface ground to half our normal flatness and surface finish specifications; the sole and sides are flat and square to within +0.000" and -0.0015" over the entire surface. It comes with a 3.5mm (9/64" or 0.14") thick by 35mm (1-3/8") wide blade with a 25 primary bevel in PM-V11 tool steel. The back of the blade is lapped flat within 0.0002" (two-tenths of a thousandth of an inch) in the working area of the blade. The lever cap is die cast.This is a modern, refined hand plane, expertly crafted and beautiful to use.
Made in Canada. Patented.

$437.00
$0.00 $437.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $109.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Made to exacting standards with refined stainless-steel hardware, this is one of Veritas' finest planes.
The knobs and wheels have elegant elliptical knurled edges for a firm grip. The lever cap has been extensively redesigned to integrate cleanly with the plane body and provide an almost continuous hand-contact surface, with tactile cues for finger placement. The Norris-type adjuster mechanism combines feed and lateral adjustments, making blade setting accurate and easy. Close manufacturing tolerances reduce backlash to no more than a 1/4 turn. The adjuster is locked to the body, and will not become inadvertently unseated.
Mouth adjustment is effected by loosening the stainless-steel locking knob. An unobtrusive set screw in the throat of the plane allows repeatable mouth positioning while at the same time preventing the moveable toe from contacting the blade. The toe is completely enclosed by the body casting.
Made from ductile iron, the contoured body is 162 x 45mm (6 5/8" long x 1-3/4" wide) with a 12° bed angle, and is finished with a durable powder-coat polymer paint. It is machined and surface ground to half our normal flatness and surface finish specifications; the sole and sides are flat and square to within +0.000" and -0.0015" over the entire surface. It comes with a 3.5mm (9/64" or 0.14") thick by 35mm (1-3/8") wide blade with a 25° primary bevel in PM-V11 tool steel. The back of the blade is lapped flat within ±0.0002" (two-tenths of a thousandth of an inch) in the working area of the blade. The lever cap is die cast.This is a modern, refined hand plane, expertly crafted and beautiful to use.
Made in Canada. Patented.
