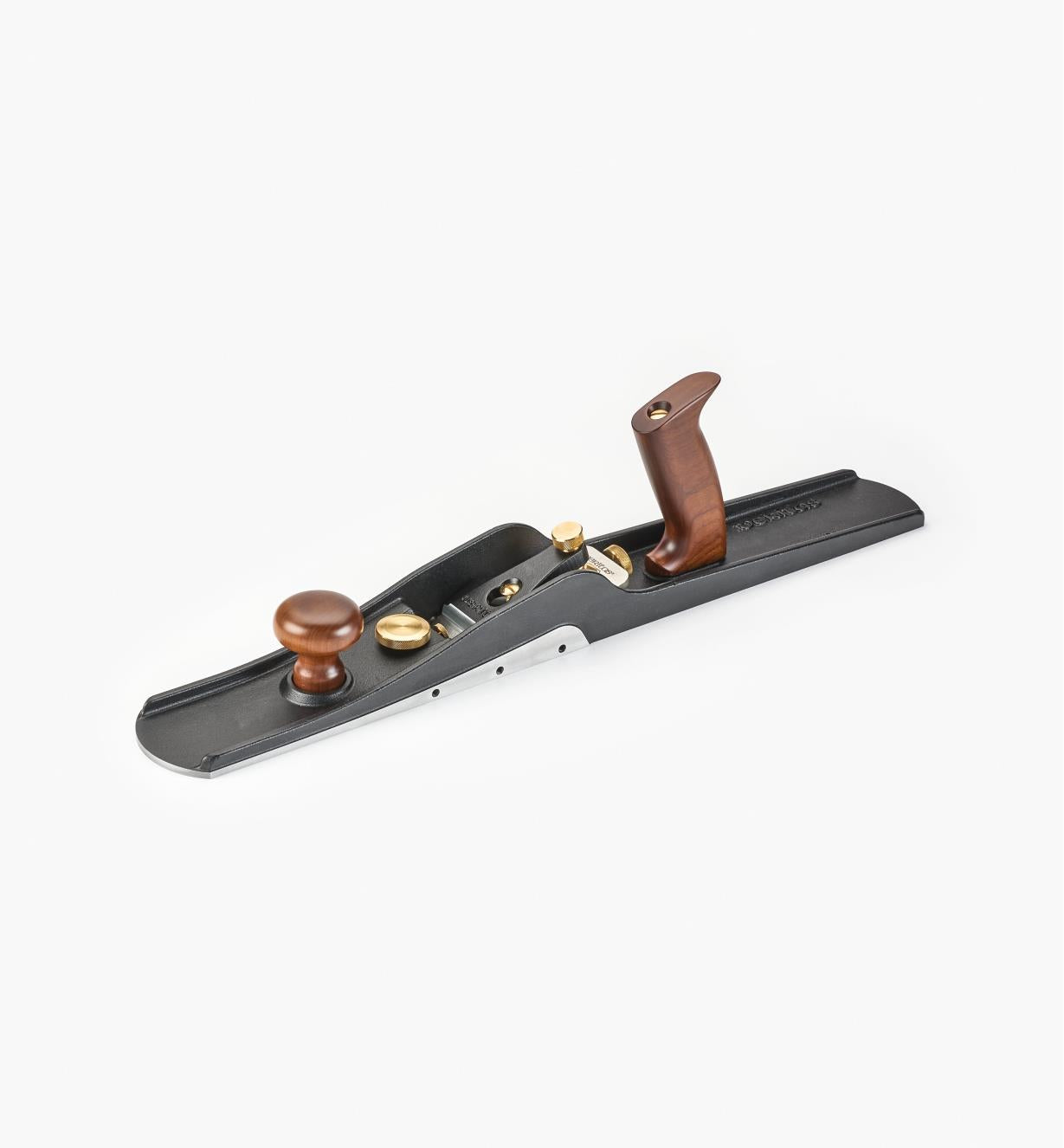

Veritas Bevel-Up Jointer Plane with PM-V11 Blade

Veritas Bevel-Up Jointer Plane with PM-V11 Blade

Product Code:
05P37-71

The Veritas low-angle jointer is the largest member of our bevel-up bench plane family. At 559mm (22") 73mm (2-7/8") and weighing 3.4kg (7 lb 8 oz), it is ideal for jointing edges and flattening large panels.
The body is fully stress-relieved ductile cast iron, with a sole that is flat and square to the sides. An adjustable throat plate allows a wide range of mouth adjustment. Our unique stop-screw retains mouth settings while preventing blade damage when removing and replacing blades.
The bevel-up blade configuration results in a plane that is versatile and straightforward to use. The 12 bed angle, coupled with the 25 blade bevel, creates an effective cutting angle of 37. Simply increasing the blade bevel results in higher cutting angles for improved performance in more difficult-grained woods.
Includes a lapped 4.75mm (3/16" or 0.187") thick blade, 57mm (2 1/4" wide), in PM-V11 tool steel. The Veritas low-angle jointer fence 05P37-05 (available separately) enables you to shoot consistent and accurate square or bevelled edges with your Veritas bevel-up jointer.
Made in Canada.

$672.00
$0.00 $672.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $168.00
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

The Veritas low-angle jointer is the largest member of our bevel-up bench plane family. At 559mm (22") × 73mm (2-7/8") and weighing 3.4kg (7 lb 8 oz), it is ideal for jointing edges and flattening large panels.
The body is fully stress-relieved ductile cast iron, with a sole that is flat and square to the sides. An adjustable throat plate allows a wide range of mouth adjustment. Our unique stop-screw retains mouth settings while preventing blade damage when removing and replacing blades.
The bevel-up blade configuration results in a plane that is versatile and straightforward to use. The 12° bed angle, coupled with the 25° blade bevel, creates an effective cutting angle of 37°. Simply increasing the blade bevel results in higher cutting angles for improved performance in more difficult-grained woods.
Includes a lapped 4.75mm (3/16" or 0.187") thick blade, 57mm (2 1/4" wide), in PM-V11 tool steel. The Veritas low-angle jointer fence 05P37-05 (available separately) enables you to shoot consistent and accurate square or bevelled edges with your Veritas bevel-up jointer.
Made in Canada.
