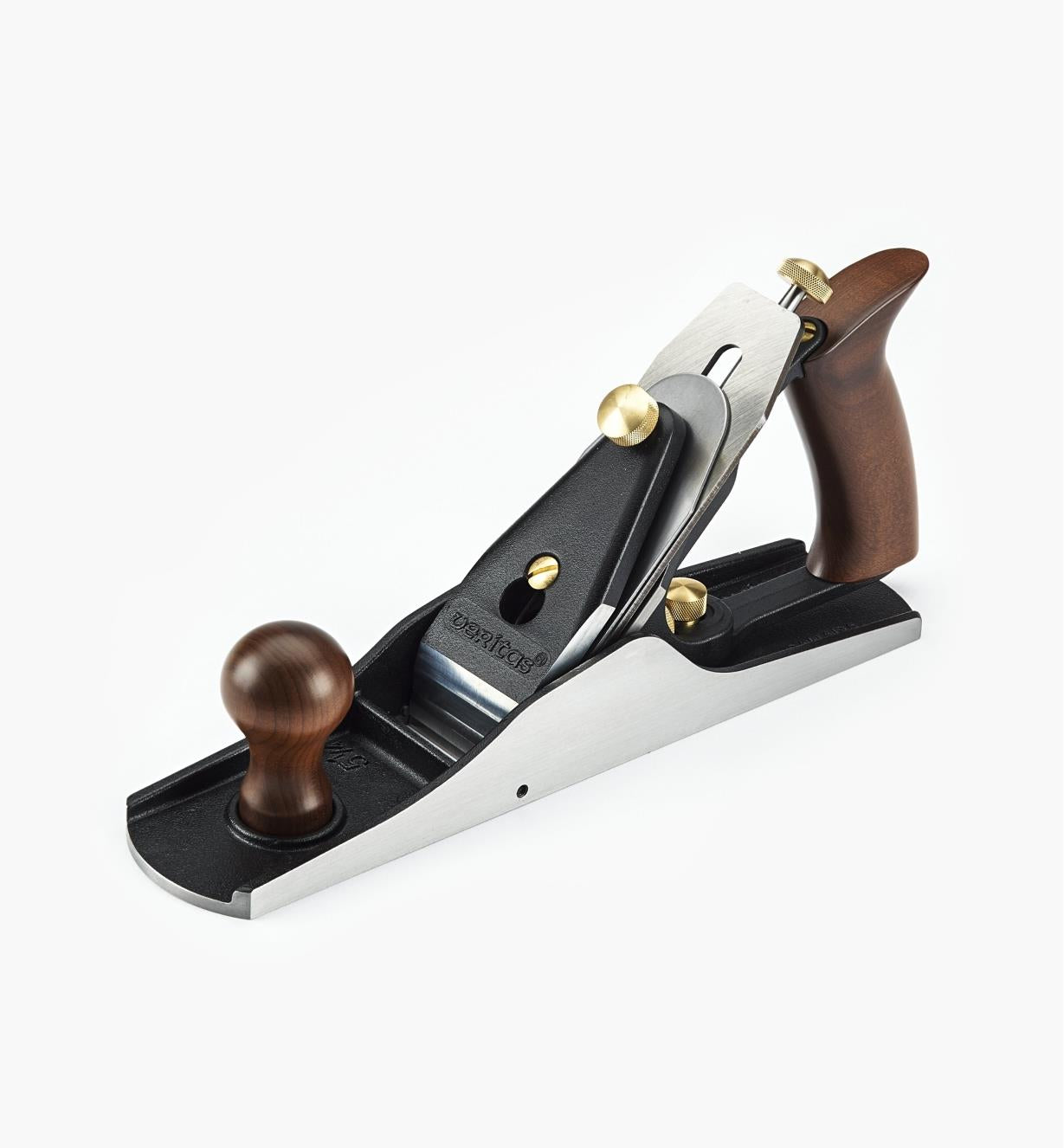

Veritas #5 1/4W Bench Plane with PM-V11 Blade

Veritas #5 1/4W Bench Plane with PM-V11 Blade

Product Code:
05P24-71

Also called a junior jack, the traditional #5 1/4 was 12" (305mm) long, in between a #4 smooth plane at 10" (254mm) and a #5 jack at 14" (255mm).The Veritas #5 1/4W differs from the original in many ways mainly, it has a wider blade and the mouth is 4 3/8" (111mm) behind the nose, unlike the original at 3 1/2" (89mm). For better accuracy, an extra-long sole in front of the blade makes it easier to keep the sole flush to the wood when starting a cut. Combined, the mouth location and sensitive feed adjustment let the #5 1/4W serve as a jointer for most cabinet work.
Like all of the Veritas bench planes, the #5 1/4W bench plane incorporates a frog that extends all the way to the sole. This unique design provides complete blade support, reducing chatter and allows quick mouth adjustment. It can be closed to a narrow slit for fine shavings and minimum tear-out, or opened for heavier cuts, all without removing the lever cap or other parts; just loosen two screws and set the opening with the thumb wheel.
The body is fully stress-relieved ductile cast iron. The surface-ground 12" (305mm) 2 1/2" (63mm) sole is flat and square to the sides, with extra-large side wings for stable shooting. The hardwood front knob and rear tote provide excellent control and comfort. A combined feed and lateral adjustment mechanism make blade setting easy and accurate. The 2" (51mm) wide lapped blade is a full 1/8" (3.2mm) thick premium PM-V11 tool steel.
Patented. Made in Canada.

Regular price $549.00
Regular price $0.00 Sale price $549.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $137.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
View full details
Product Details

Also called a junior jack, the traditional #5 1/4 was 12" (305mm) long, in between a #4 smooth plane at 10" (254mm) and a #5 jack at 14" (255mm).The Veritas #5 1/4W differs from the original in many ways – mainly, it has a wider blade and the mouth is 4 3/8" (111mm) behind the nose, unlike the original at 3 1/2" (89mm). For better accuracy, an extra-long sole in front of the blade makes it easier to keep the sole flush to the wood when starting a cut. Combined, the mouth location and sensitive feed adjustment let the #5 1/4W serve as a jointer for most cabinet work.
Like all of the Veritas bench planes, the #5 1/4W bench plane incorporates a frog that extends all the way to the sole. This unique design provides complete blade support, reducing chatter and allows quick mouth adjustment. It can be closed to a narrow slit for fine shavings and minimum tear-out, or opened for heavier cuts, all without removing the lever cap or other parts; just loosen two screws and set the opening with the thumb wheel.
The body is fully stress-relieved ductile cast iron. The surface-ground 12" (305mm) × 2 1/2" (63mm) sole is flat and square to the sides, with extra-large side wings for stable shooting. The hardwood front knob and rear tote provide excellent control and comfort. A combined feed and lateral adjustment mechanism make blade setting easy and accurate. The 2" (51mm) wide lapped blade is a full 1/8" (3.2mm) thick premium PM-V11 tool steel.
Patented. Made in Canada.
