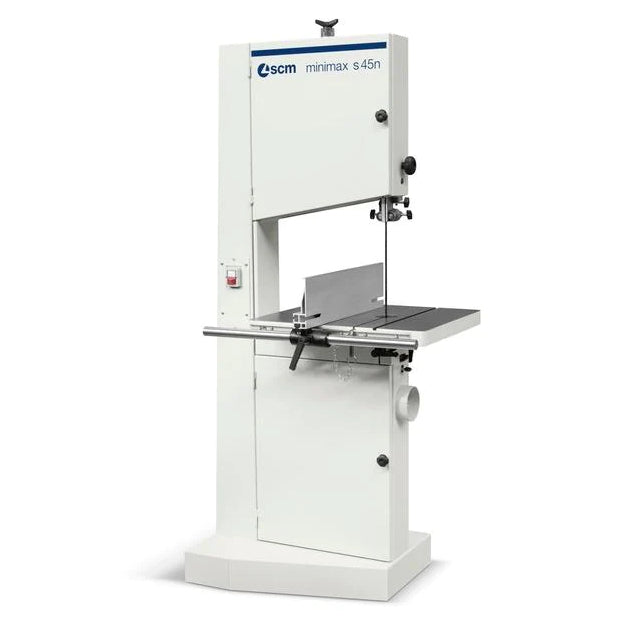

SCM Minimax S45N Single Phase Bandsaw

SCM Minimax S45N Single Phase Bandsaw

Product Code:
SCM-S45N1

Fitted with a large, oversized worktable, the precise movements and modern design have made the S45N the reference point. Italian made heavy duty construction make this a true industial offering in a compact body. Featuring:

450mm diameter wheels
3hp, 2.2kW 230V motor
440mm cutting width
300mm cutting depth
Built to EU/CE safety standards

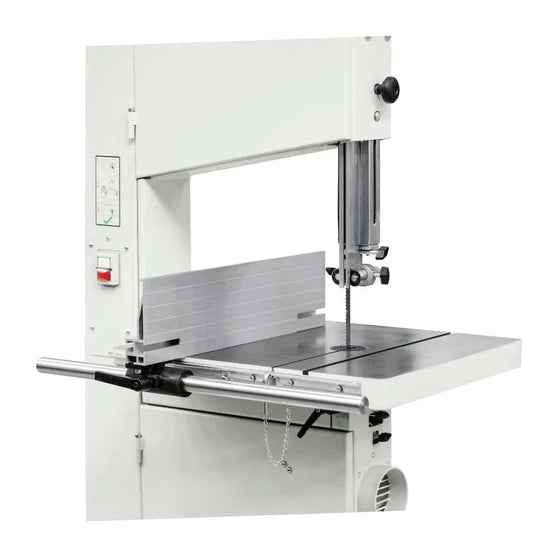

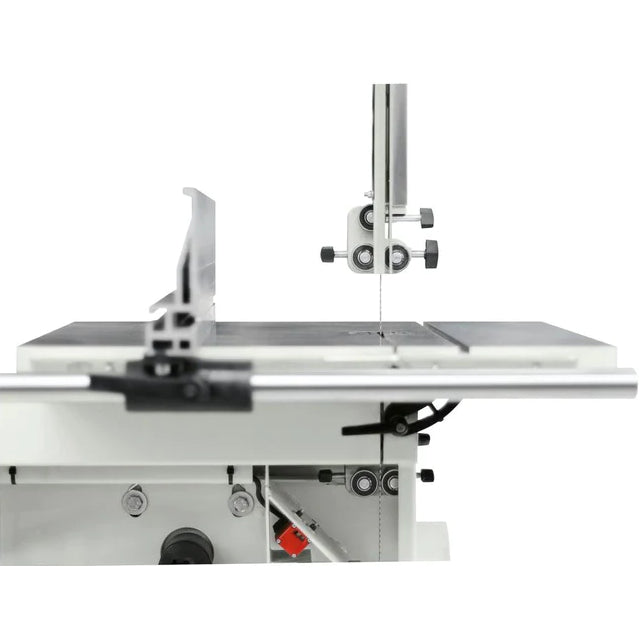

The integral parts of this bandsaw are what sets it apart. The heavy cast iron wheels and worktable guarantee a solid working platform. Combine this with the high precision top and bottom blade guides (fully adjustable) and you have a machine that gives a beautiful, true cut. A large anodised aluminium fence running on a solid bar section gives a solid reference point when sawing.

$5,159.00
$0.00 $5,159.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $1,289.75
Special Order item. A Carbatec representative will contact you to confirm delivery lead times.
All woodworking machines require effective dust extraction to ensure quality work and longevity of the machine itself. Failure to connect your machine to a suitable dust collector may affect your warranty.
Please note: Bulky items are not eligible for free shipping. Delivery costs for these products will vary depending on the size of the item and the delivery location. Shipping will be calculated and confirmed during the checkout process.
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

• Cast iron worktable dimensions 600x520mm
• Worktable height from floor 900mm
• Cast iron saw wheel diameter 450mm
• Max cutting height 300mm
• Max cutting width 440mm
• Worktable tilts to 20 degrees
• Exhaust outlet diameter 120mm
• 3hp, 2.2kW 230v motor (15A)
• Telescopic blade protection with rack
• Saw blade tensioning indicator
• Top and bottom precision blade guides.
• Cleaning brush on the bottom wheel.
• Safety micro switches on the doors

Additional information
6 specs...
Blade Guides
Ball Bearings, Top & Bottom
Blade Length
3690-3745 mm
Dust Ports Size
1 x 125 mm (5")
Maximum Depth Of Cut
300 mm
Maximum Rip Capacity
440 mm
Motor
2200W (3HP) Induction -15A Plug
