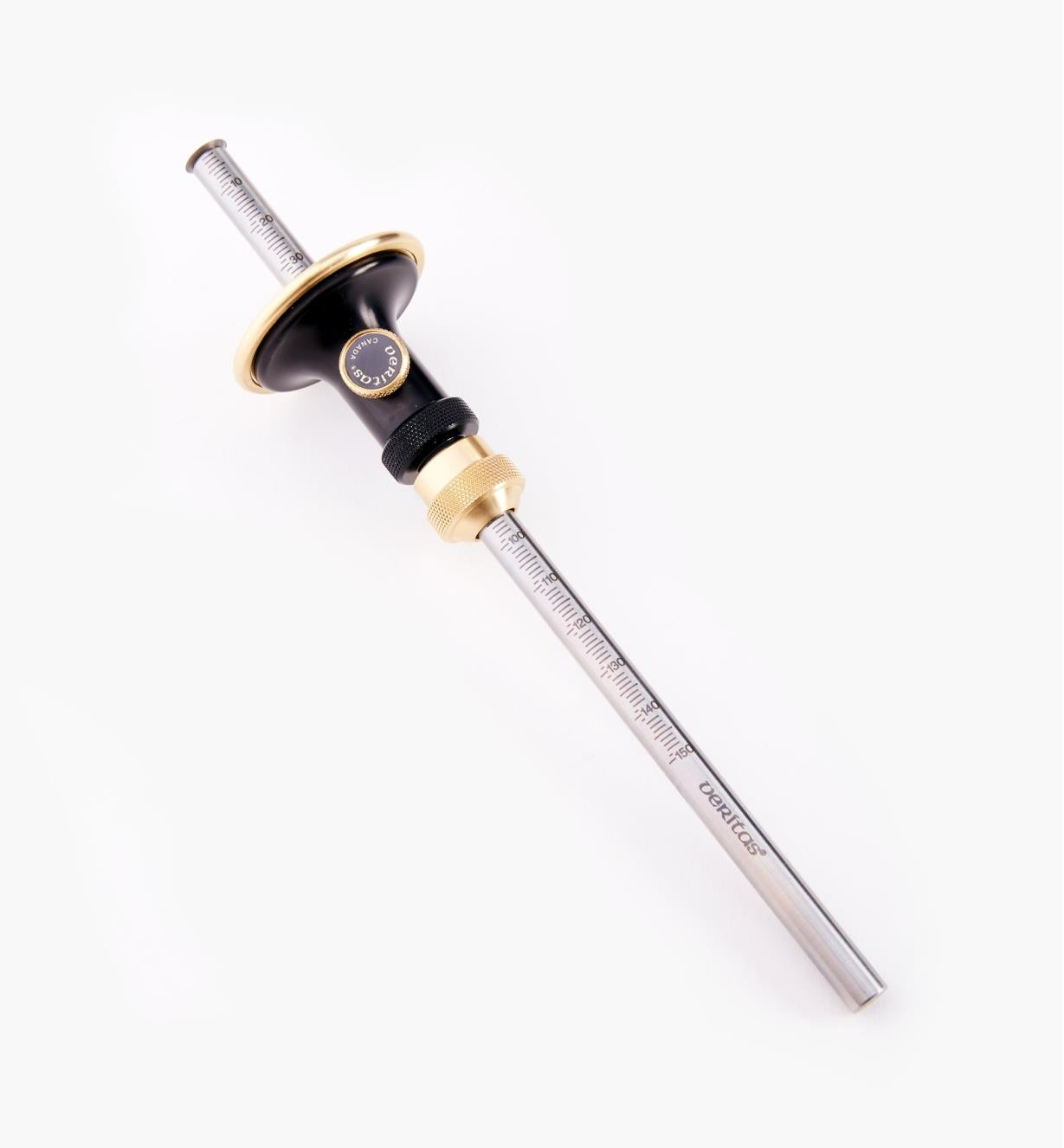

Veritas® Metric Graduated Marking Gauge

Veritas® Metric Graduated Marking Gauge

Product Code:
05N35-21

Our standard wheel marking gauge is a great workhorse and excellent value. Its popularity led to the development of a second model that incorporates a micro-adjust feature. It is similar to our standard wheel marking gauge with an anodized aluminum body, brass face, stainless-steel rod and internal O-ring to keep a constant light friction force on the rod. It differs in that the body is slightly longer and is fitted with a two-stage collet that allows micro-adjustment of the cutting wheel. The collet has a fine-pitch thread; one revolution advances or retracts the wheel 1/32", a half turn 1/64", a quarter turn 1/128", etc. The knurled thumbscrew then locks the setting.

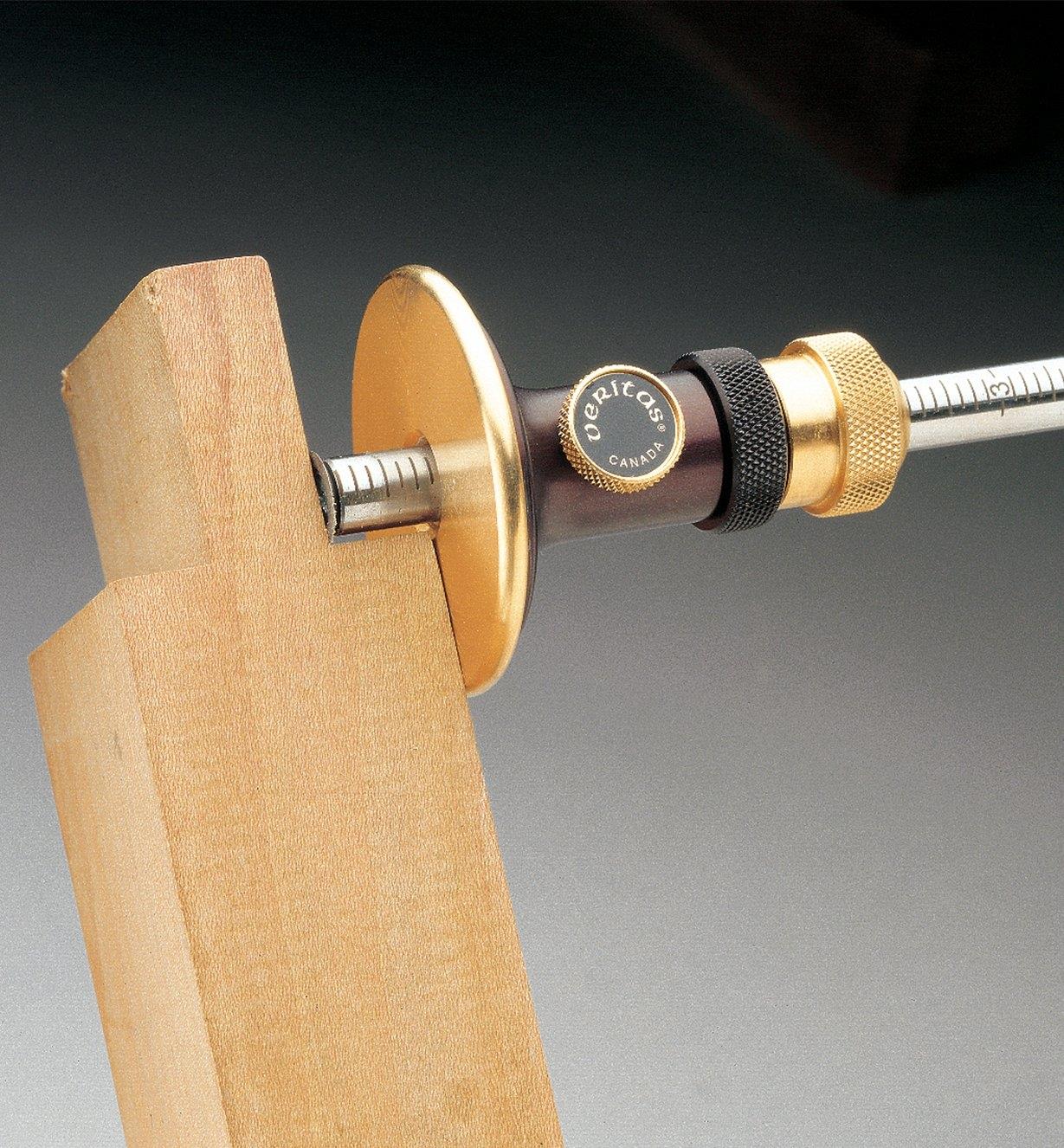

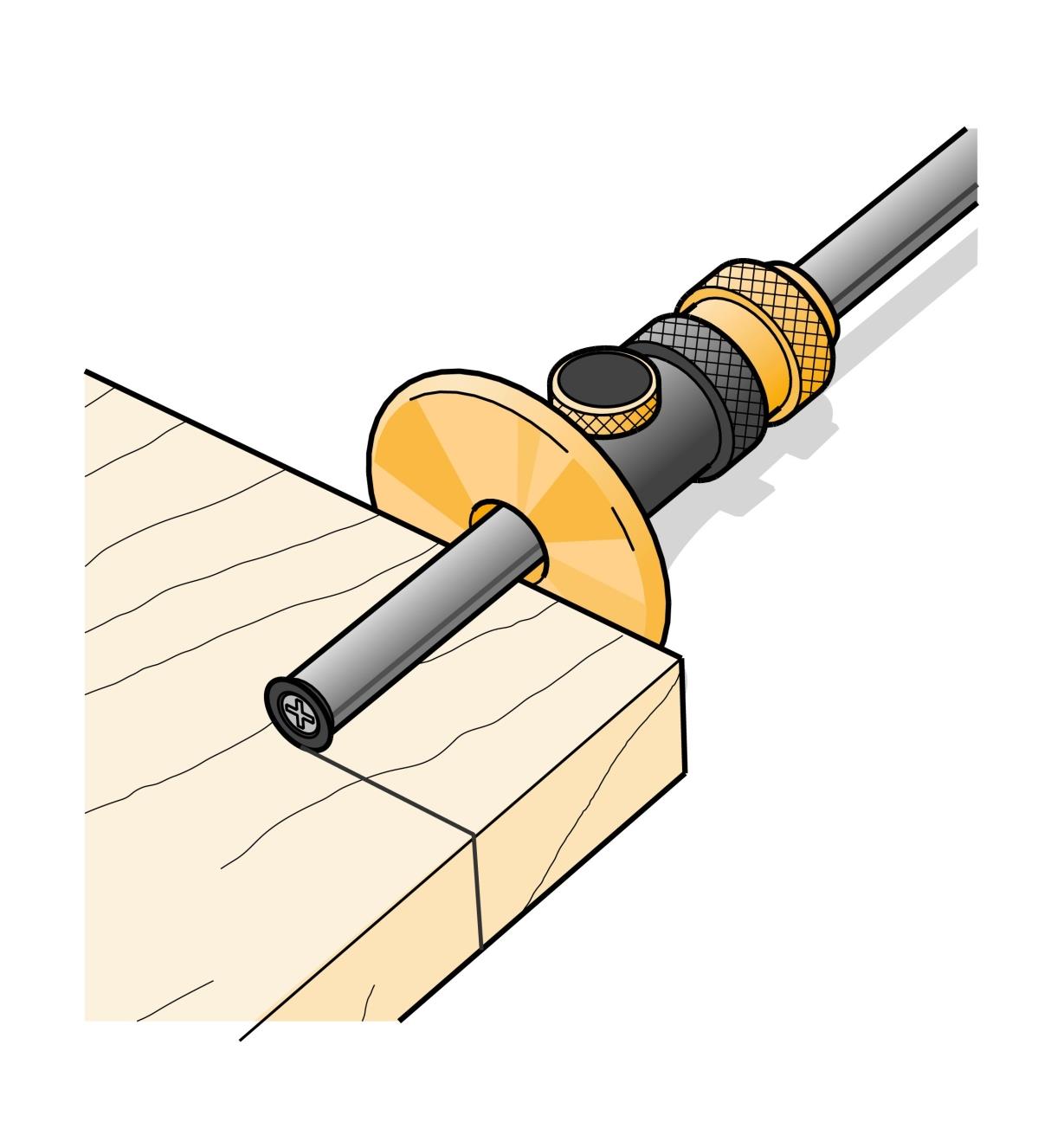

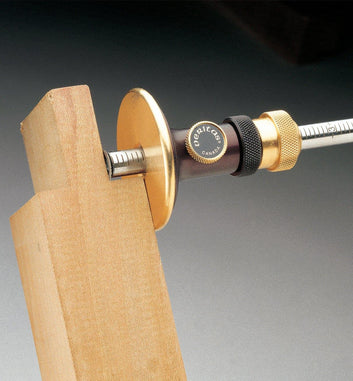

The hardened steel wheel cuts wood fibers rather than tears them, which leaves a clean mark, even on cross grain. The wheels single-sided bevel also forces the gauge face against the stock, maintaining accuracy. The cutting edge of the wheel is at the extreme end of the shaft, which is useful for transferring dimensions such as tenon shoulder or mortice depth. The wheel retracts into the face of the gauge for storage.
The gauge is available with either an unmarked rod or a graduated rod. The rod of the Imperial gauge is graduated to 6" in 16ths; the metric version has graduations to 150mm. Patented.Made in Canada.

$99.00
$0.00 $99.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $24.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Our standard wheel marking gauge is a great workhorse and excellent value. Its popularity led to the development of a second model that incorporates a micro-adjust feature. It is similar to our standard wheel marking gauge with an anodized aluminum body, brass face, stainless-steel rod and internal O-ring to keep a constant light friction force on the rod. It differs in that the body is slightly longer and is fitted with a two-stage collet that allows micro-adjustment of the cutting wheel. The collet has a fine-pitch thread; one revolution advances or retracts the wheel 1/32", a half turn 1/64", a quarter turn 1/128", etc. The knurled thumbscrew then locks the setting.
The hardened steel wheel cuts wood fibers rather than tears them, which leaves a clean mark, even on cross grain. The wheel’s single-sided bevel also forces the gauge face against the stock, maintaining accuracy. The cutting edge of the wheel is at the extreme end of the shaft, which is useful for transferring dimensions such as tenon shoulder or mortice depth. The wheel retracts into the face of the gauge for storage.
The gauge is available with either an unmarked rod or a graduated rod. The rod of the Imperial gauge is graduated to 6" in 16ths; the metric version has graduations to 150mm. Patented.Made in Canada.
