Veritas Inset Vice

Veritas Inset Vice

Product Code:
05G31-01

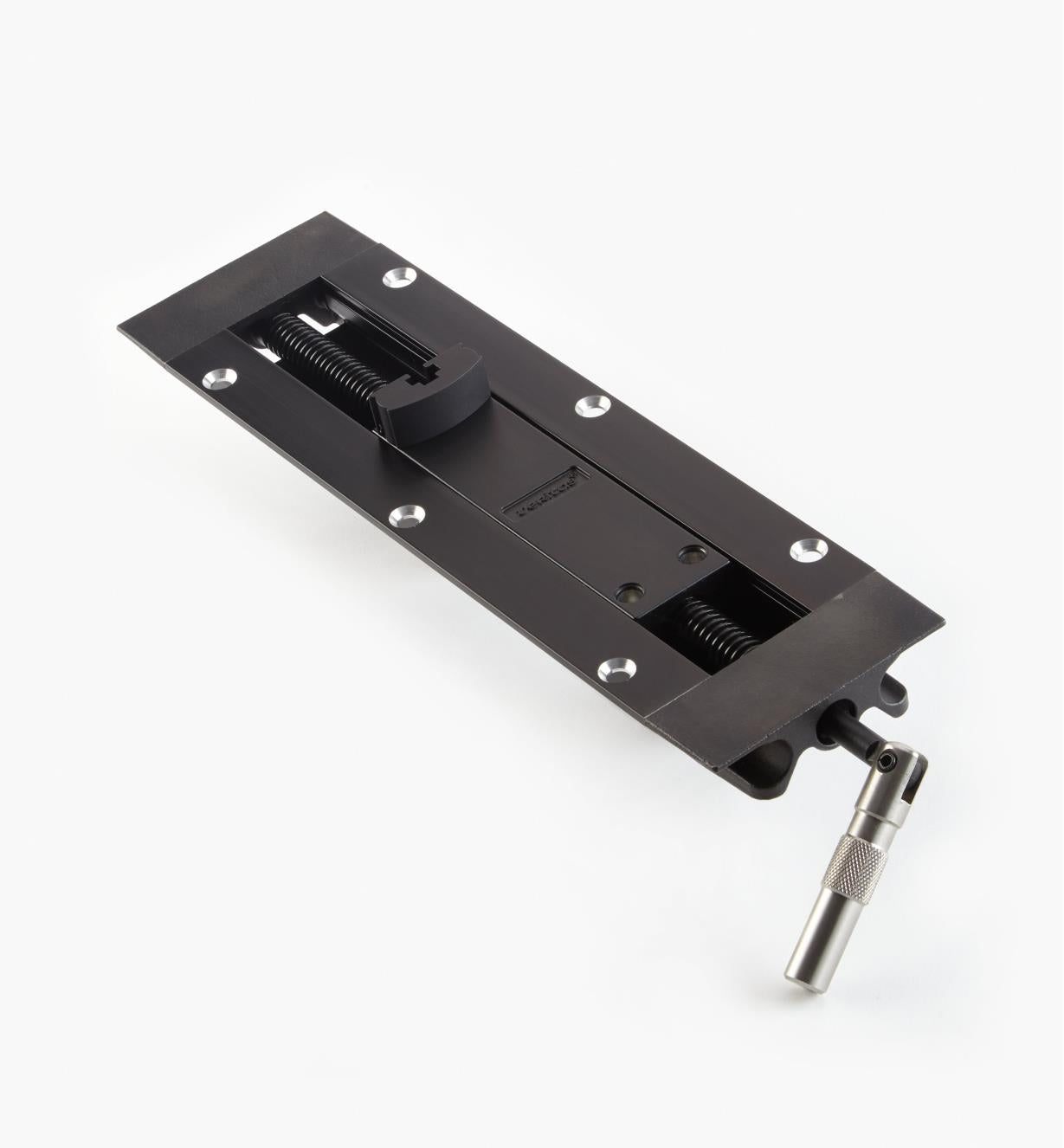

This low-profile vise is similar to a wagon vise in function, but in a compact, self-contained form for easy installation in a work surface, adding a permanent, adjustable dog right where it's needed.

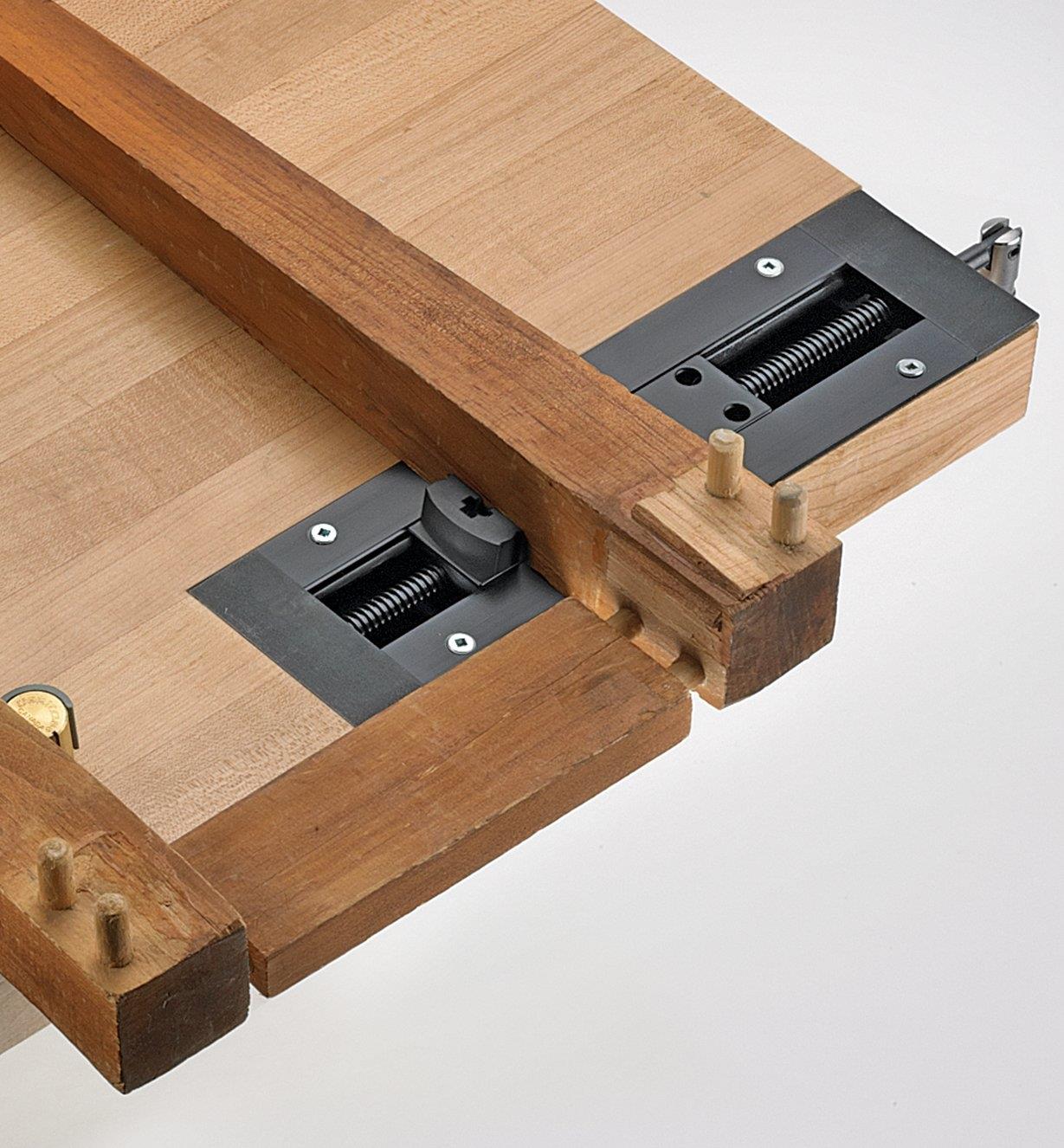

Designed to hold work between its single jaw and an external stop such as a bench dog, it has a clamping capacity that is limited only by the size and dog-hole spacing of your work surface. The knurled stainless-steel toggle handle turns a 1/2 diameter Acme-threaded steel rod to move the jaw in a 4 range of travel. The 1/2 tall, 1 3/16 wide jaw has two jaw-mounting positions spaced 3 7/8 apart for compatibility with dog-hole spacing up to 7 3/4. A keyway in the jaw face accepts a #10 nut for affixing custom shop-built jaws. When the vise is not in use, the jaw can be removed whenever you need an unobstructed work surface.

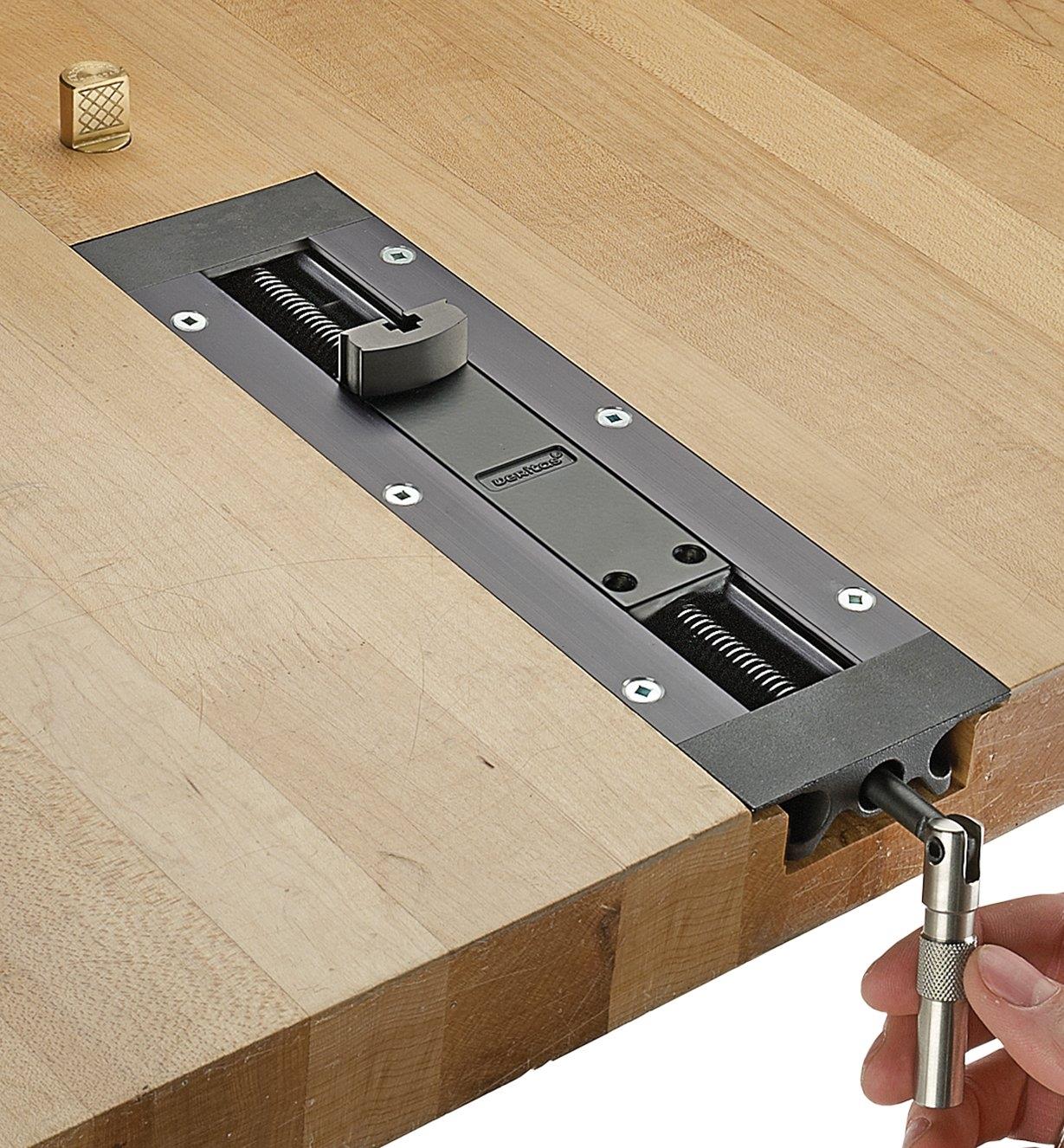

The vise installs flush in a stepped mortise in any surface at least 1 1/4 thick (instructions and mounting hardware provided). Constructed of machined steel castings and anodized aluminum extrusions.

Made in Canada.

$211.00
$0.00 $211.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $52.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

This low-profile vise is similar to a wagon vise in function, but in a compact, self-contained form for easy installation in a work surface, adding a permanent, adjustable dog right where it's needed.

Designed to hold work between its single jaw and an external stop such as a bench dog, it has a clamping capacity that is limited only by the size and dog-hole spacing of your work surface. The knurled stainless-steel toggle handle turns a 1/2 diameter Acme-threaded steel rod to move the jaw in a 4 range of travel. The 1/2 tall, 1 3/16 wide jaw has two jaw-mounting positions spaced 3 7/8 apart for compatibility with dog-hole spacing up to 7 3/4. A keyway in the jaw face accepts a #10 nut for affixing custom shop-built jaws. When the vise is not in use, the jaw can be removed whenever you need an unobstructed work surface.

The vise installs flush in a stepped mortise in any surface at least 1 1/4 thick (instructions and mounting hardware provided). Constructed of machined steel castings and anodized aluminum extrusions.

Made in Canada.
